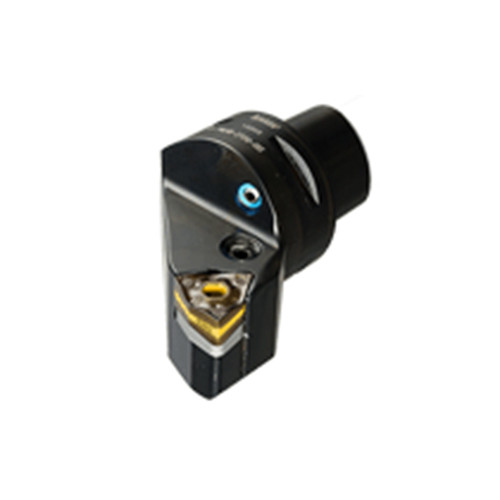

C4 PWLNR-27050-08X
Turning Toolholder; 2.913″ OAL × 1.575″ Shank Dia. ; Right Hand ; Steel

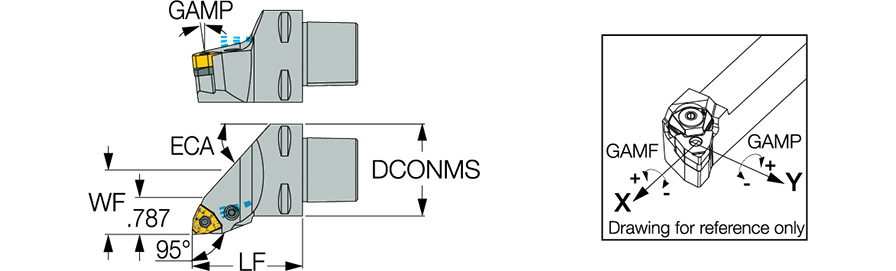

| Overall Length (OAL) | 2.913″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 1.968″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Width (WF) | 1.063″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 1/2″ | End Chamfer Angle (ECA) | 45 Degrees |
| Cutting Direction (HAND) | Right Hand | Tool Type | Tapered Shank Turning Tools |
| Master Insert Identification (MIID) | WNMX 0807, WNMG 0804 | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru | Style | SCLCL08-3A |
| Application | | Ext. 80° Trigon 95° Approach | | Insert Style | 1.968″ |
Product Features

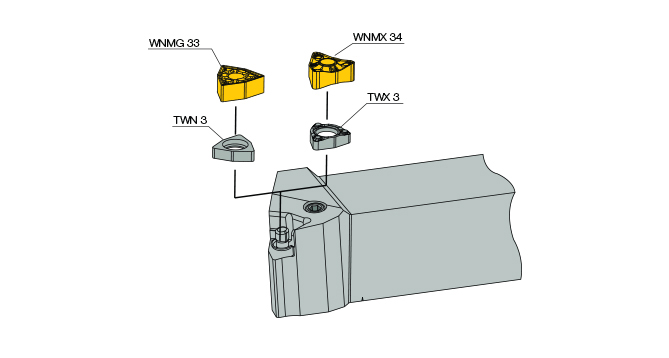

| Family Description | Lever lock tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks, carrying HELITURN LD WNMX or WNMG inserts (enabled by changing the seat). | Country of Origin | Israel |
Shipping Info
Package Weight
1.034
