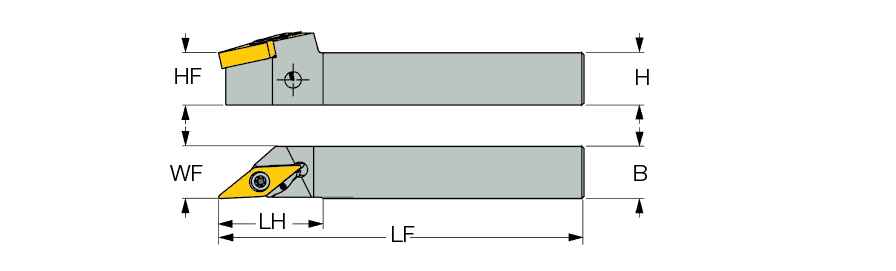

SVANR 08-2.5FS
| Shank Height (H) | 1/2″ | Rake Angle Axial (GAMP) | -12 Degrees |
| Shank Width (B) | 1/2″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 5″ | Body Material | Steel |
| Head Length (LH) | 1″ | Cutting Position | External |
| Functional Width (WF) | 1/2″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 0.281″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | VN.. 2.5 | Insert Style | 5″ |
| Application | | Ext. 35° Diamond 93° Approach | |
Product Features
| Family Description | Screw-lock holders for negative, 35° inserts with a wedge for high rigidity in profiling applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.326
