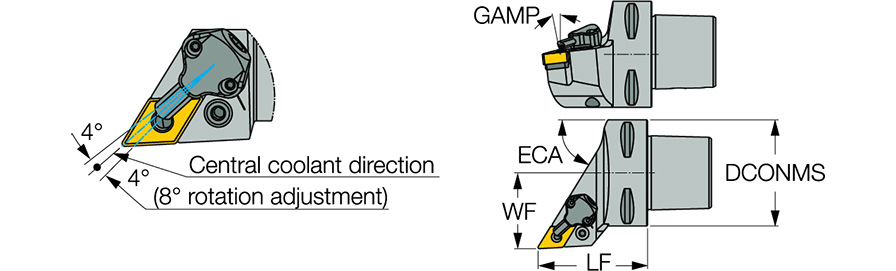

| Overall Length (OAL) | 4.055″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 2.559″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Width (WF) | 1.772″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 1/2″ | End Chamfer Angle (ECA) | 58 Degrees |
| Cutting Direction (HAND) | Right Hand | Tool Type | Tapered Shank Turning Tools |
| Master Insert Identification (MIID) | DN..4.. | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru | Style | SCLCL08-3A |
| Application | | Ext. 55° Diamond 93° Approach | | Insert Style | 2.559″ |
Product Features

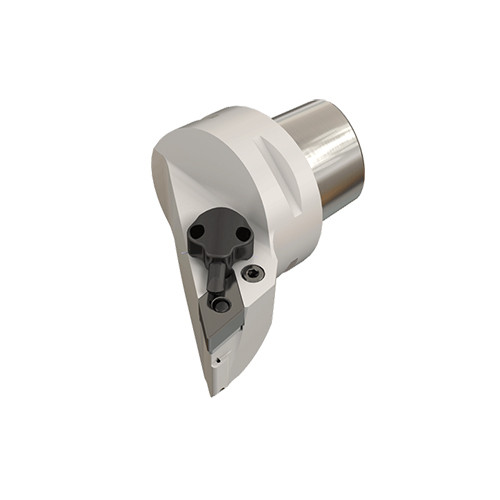

| Family Description | Lever lock tools with CAMFIX (ISO 26623-1 standard) exchangeable shanks and channels for high-pressure coolant, carrying negative 55° inserts. | Country of Origin | Israel |
| Remarks | For more details, click on More Info |
Shipping Info
Package Weight
2.645
