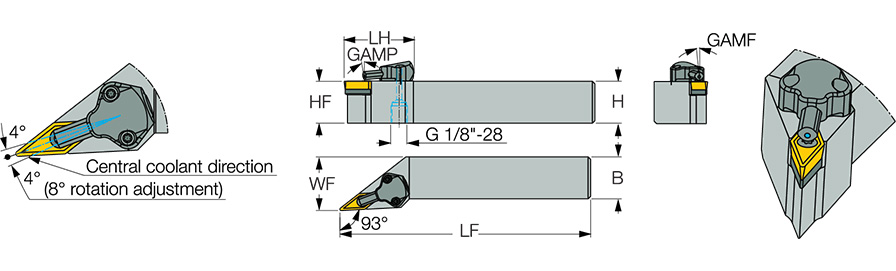

| Shank Height (H) | 1″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 1″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Head Length (LH) | 1.65″ | Cutting Position | External |
| Functional Width (WF) | 1-1/4″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | VC..33 | Insert Style | 6″ |
| Application | | Ext. 35° Diamond 93° Approach | |
Product Features

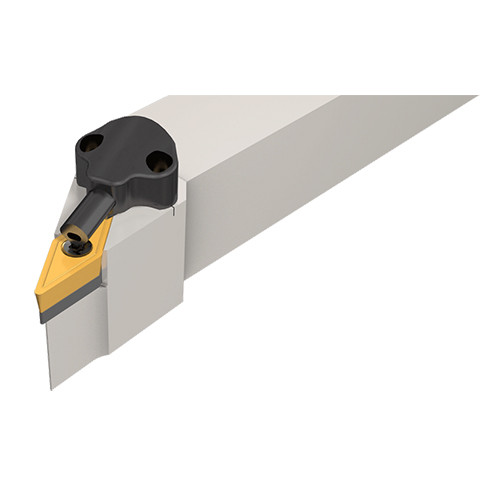

| Family Description | 93° lead angle screw lock tools with channels for high pressure coolant carrying the 35° diamond inserts with 7° clearance angle. | Country of Origin | Israel |
| Remarks | For more details, click on More Info |
Shipping Info
Package Length
6.00000
Package Width
2.00000
Package Height
2.00000
Package Weight
1.668
