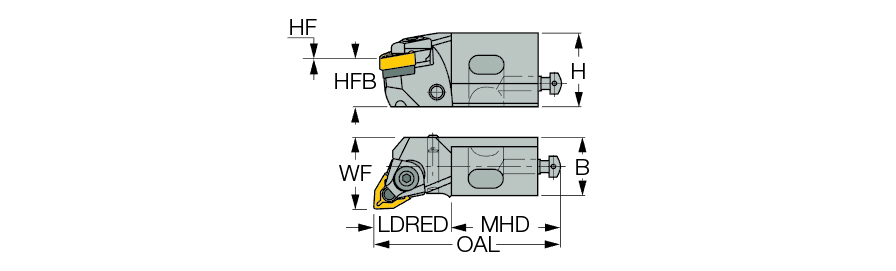

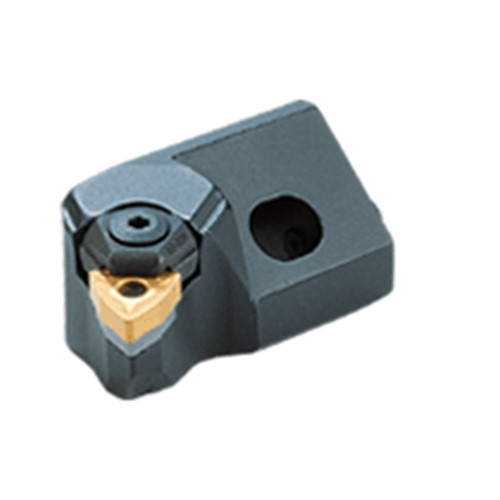

MWLNR 16CA-06W
| Shank Height (H) | 0.984″ | Application | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | |
| Shank Width (B) | 0.787″ | Rake Angle Axial (GAMP) | -8 Degrees |
| Overall Length (OAL) | 2.48″ | Rake Angle Radial (GAMF) | -8 Degrees |
| Functional Length (LF) | 2.48″ | Body Material | Steel |
| Head Length (LH) | 1.039″ | Cutting Position | External |
| Functional Width (WF) | 0.984″ | Tool Type | Adapter Turning Tools |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | WNMG 06T3 |
Product Features
| Family Description | Top wedge lock cartridges carrying the negative trigon inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.346
