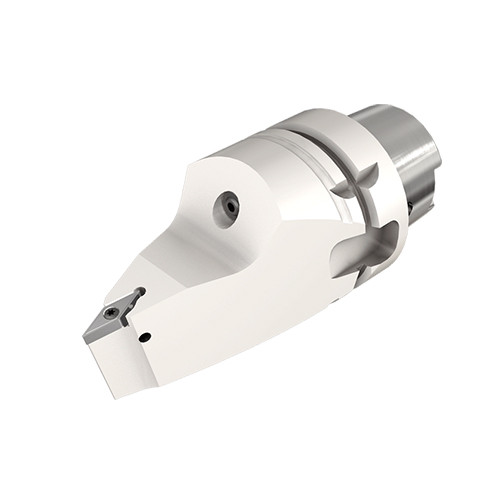

HSK A63WH-SVVNN-J12F
Turning Toolholder; 5.591″ OAL × 2.48″ Shank Dia. ; Steel

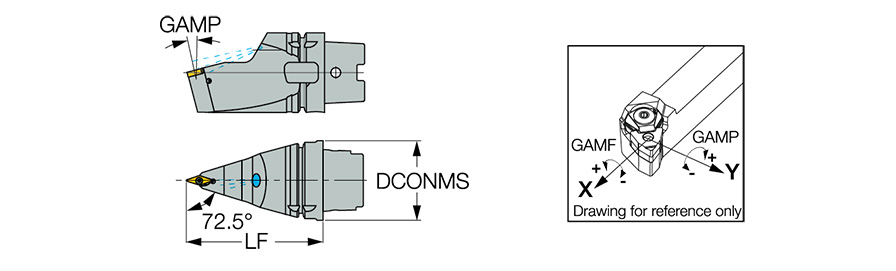

| Overall Length (OAL) | 5.591″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 4.331″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 0.281″ | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Neutral | Measurement Type | Inch |
| Master Insert Identification (MIID) | VNM. 12T3 | Style | SCLCL08-3A |
| Coolant Supply Property (CSP) | Coolant Thru | Insert Style | 4.331″ |
| Application | | Ext. 35° Diamond 72.5° Approac | | Connection Code Machine Side (CCMS) | HSK |
| Rake Angle Axial (GAMP) | -14 Degrees |
Product Features
| Family Description | Screw lock 72.5° entering angle tools with HSK exchangeable tapered shanks, carrying 35° negative rhombic inserts. Designed for turn-mill machines | Country of Origin | Israel |
| Remarks | Complies with ICTM standard (ISO 12164-3) A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) For shank dimensions, Click on More Info |
Shipping Info
Package Weight
3.481
