C4 SLANR-27050-15 TANG
Turning Toolholder; 2.913″ OAL × 1.575″ Shank Dia. ; Right Hand ; Steel

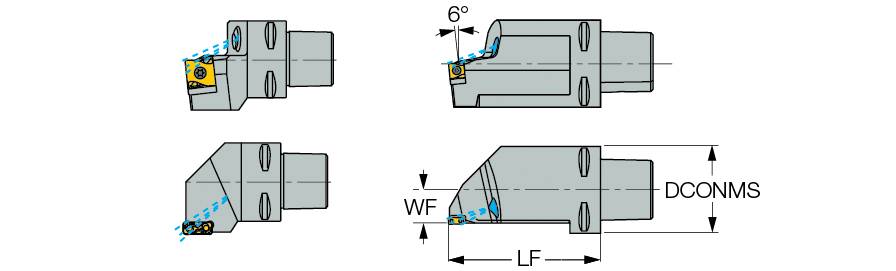

| Overall Length (OAL) | 2.913″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 1.968″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Width (WF) | 1.063″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Cutting Position | External |
| Cutting Direction (HAND) | Right Hand | Tool Type | Tapered Shank Turning Tools |
| Master Insert Identification (MIID) | LNMX 1506.. | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru | Style | SCLCL08-3A |
| Application | | Ext. Tangential 93° Approach | | Insert Style | 1.968″ |
Product Features
| Family Description | Tools with CAMFIX (ISO 26623-1 standard) taper shanks carrying the LNMX-HT tangentially screw clamped inserts. Recommended for heavy-duty, high metal removal rate applications on turn-mill machines. | Country of Origin | Israel |
Shipping Info
Additional Fees and Notes
0
Package Weight
1.208
