PSSNR 16-3 *

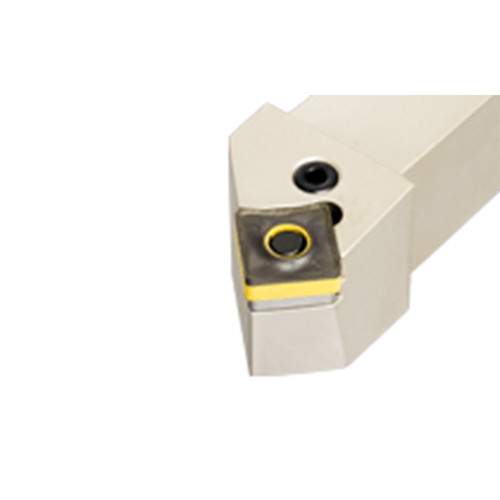

Turning Toolholder; 1″ × 1″ Shank Size × 1″ LH × 6-1/4″ OAL ; Right Hand ; Steel
| Shank Height (H) | 1″ | Application | | Ext. 90°Square 45°Face&Turn Ap | |
| Shank Width (B) | 1″ | Rake Angle Axial (GAMP) | -5.5 Degrees |
| Overall Length (OAL) | 6-1/4″ | Rake Angle Radial (GAMF) | -5.5 Degrees |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Head Length (LH) | 1″ | Cutting Position | External |
| Functional Width (WF) | 1-1/4″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | SNMG 33 | Insert Style | 6″ |
Product Features
| Family Description | 45° lead angle lever lock tools carrying negative square inserts for longitudinal and facing applications. | Country of Origin | Israel |
Shipping Info
Package Weight
1.748
