284-000502 5/16-4FL-A

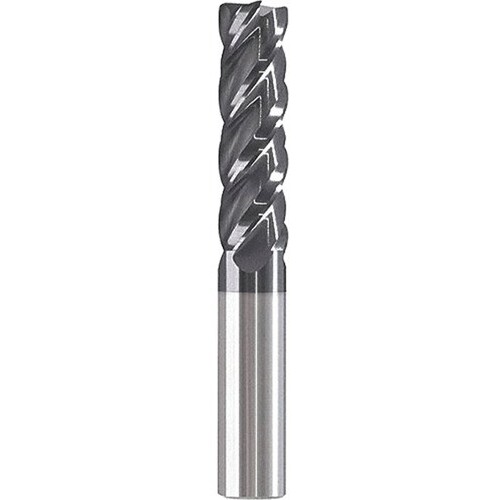

SQ End Mill; 5/16″ Dia. × 1/2″ LOC × 5/16″ Shank Dia. × 2-1/2″ OAL ; 0.015″ RE ; 4 FL ; Carbide ; AlTiCrN ; Series 284
| Cutting Diameter (DC) | 5/16″ | Application | Profiling | Ramping | Profile Cutting | Radiusing | Radius Slotting |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Corner Radius (RE) | 0.015″ |
| Depth of Cut Maximum (APMX) | 1/2″ | Grade | C-2 Sub-Micron |
| Overall Length (OAL) | 2-1/2″ | Length Group | Stub |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.3125″ |
| Coating | AlTiCrN | Series/List # | 284 |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | Variable | Single / Double End | Single End |
| End Shape | Corner Radius | Center Cutting | Yes |
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.09
