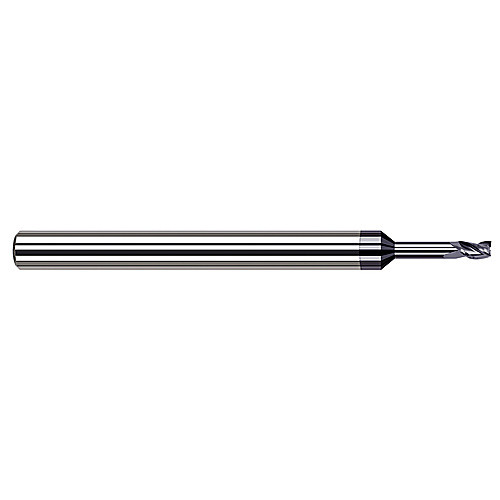

Miniature End Mills - Long Reach, Stub Flute - 0.0230″ Cutter Diameter × 0.0350″ Length of Cut × 0.1150″ Reach Carbide Square End Mill, 3 Flutes, AlTiN Coated
SQ End Mill; 0.023″ Dia. × 0.035″ LOC × 1/8″ Shank Dia. × 2-1/2″ OAL ; 3 FL ; 0.115″ LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 0.023″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 0.115″ |
| Depth of Cut Maximum (APMX) | 0.035″ | Length Group | 5D |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Stub |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.023″ |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 3 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.026
