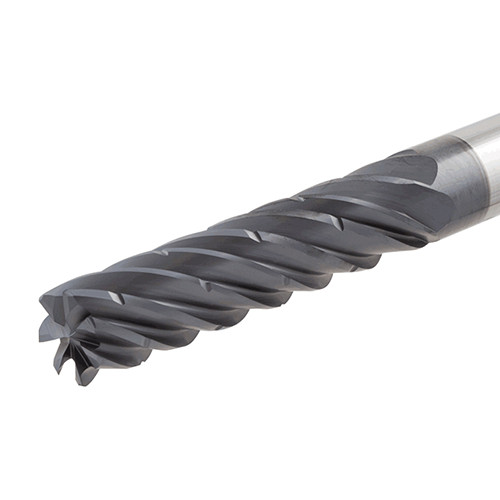

ECPI-H7 375-2.25C375CF-5 IC902
SQ End Mill; 3/8″ Dia. × 2-1/4″ LOC × 3/8″ Shank Dia. × 5″ OAL ; 7 FL ; 2-1/4″ LBS ; Carbide ; AlTiN

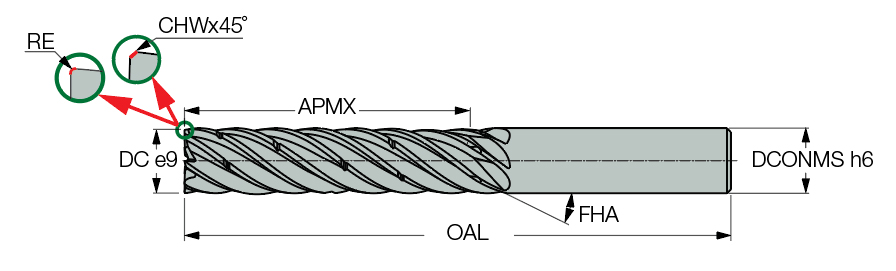

| Cutting Diameter (DC) | 3/8″ | Corner Chamfer Width (CHW) | 0.012″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Grade | IC902 |
| Depth of Cut Maximum (APMX) | 2-1/4″ | Tool Type | HSK |
| Overall Length (OAL) | 5″ | Maximum Feed per Tooth (fz(max)) | 0.003 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.0008 ″/tooth |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 7 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 36 Degrees | Decimal Equivalent | 0.375″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Chamfer | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 2-1/4″ | Cutting Diameter Tolerance | e9 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Counter Boring | Plunging & Recessing | Shouldering | |
Product Features
| Family Description | CHATTERFREE 7 flute solid carbide roughing endmills with 35-37° different helix and long chip splitting cutting edges for high stock removal rates. Mainly for machining stainless steel and high temperature alloys. | Country of Origin | Israel |
Shipping Info
Package Weight
0.055
