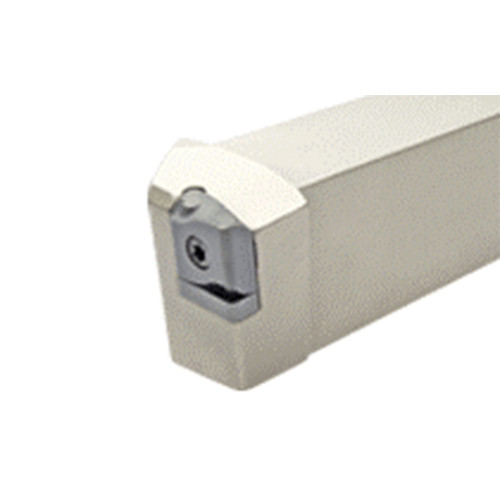

SLFNR 3232P-15 TANG

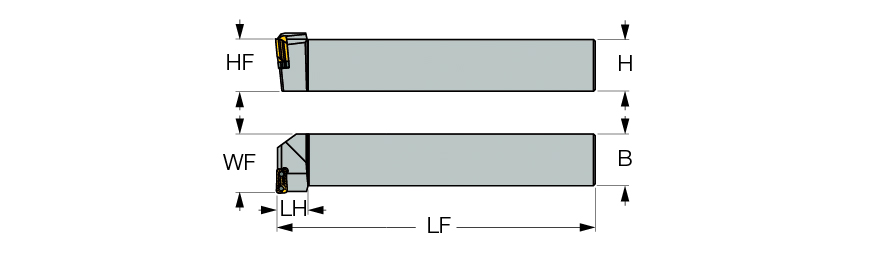

| Shank Height (H) | 32 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 32 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 170 mm | Body Material | Steel |
| Head Length (LH) | 20 mm | Cutting Position | External |
| Functional Width (WF) | 37 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | LNMX 1506..L/R | Style | SCLCL08-3A |
| Application | | Ext. Tangential 93°Face Approa | | Insert Style | 170mm |
Product Features
| Family Description | Screw-clamped tools carrying LNMX tangentially clamped inserts, for heavy face and longitudinal turning. | Country of Origin | Israel |
| Remarks | ap max for longitudinal turning is 5.8 mm Right-hand insert and seat for left-hand holder, Left-hand insert and seat for right-hand holder |
Shipping Info
Package Weight
3.089
