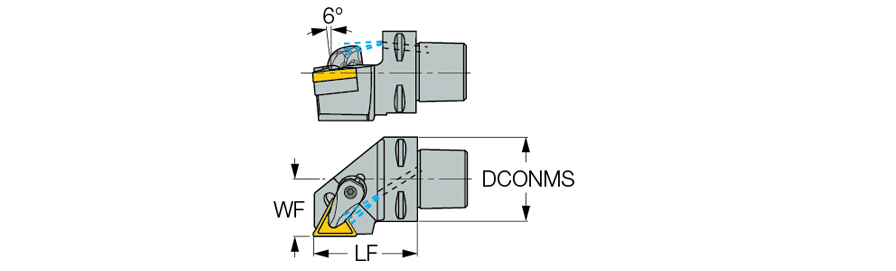

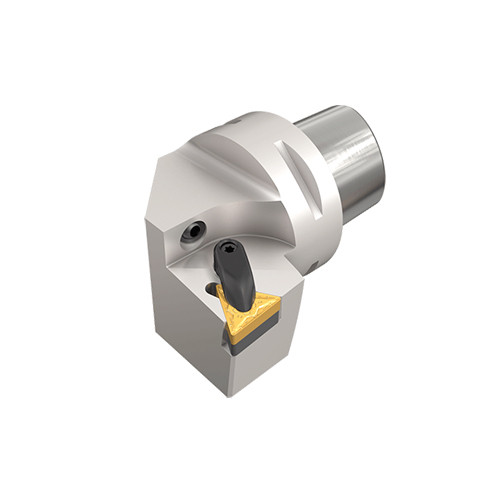

C6 DTGNR-45065-22
Turning Toolholder; 4.055″ OAL × 2.48″ Shank Dia. ; Right Hand ; Steel
| Overall Length (OAL) | 4.055″ | Application | | Ext. 60° Triangle 91° Approach | |
| Functional Length (LF) | 2.559″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Width (WF) | 1.772″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Position | External |
| Cutting Direction (HAND) | Right Hand | Tool Type | Tapered Shank Turning Tools |
| Master Insert Identification (MIID) | TN.. 22 | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru | Style | SCLCL08-3A |
Product Features
| Family Description | 91° entering angle R-clamp tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks, carrying negative triangular inserts | Country of Origin | Israel |
Shipping Info
Package Weight
3.565
