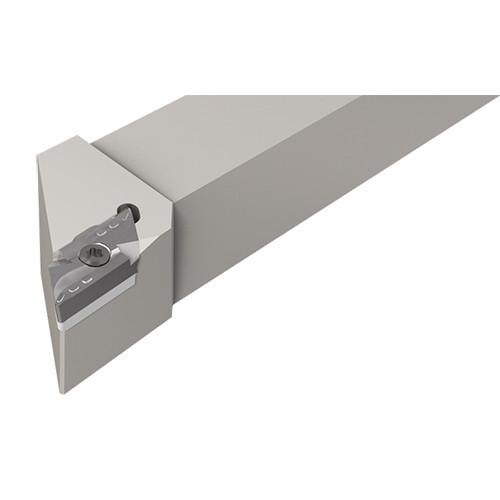

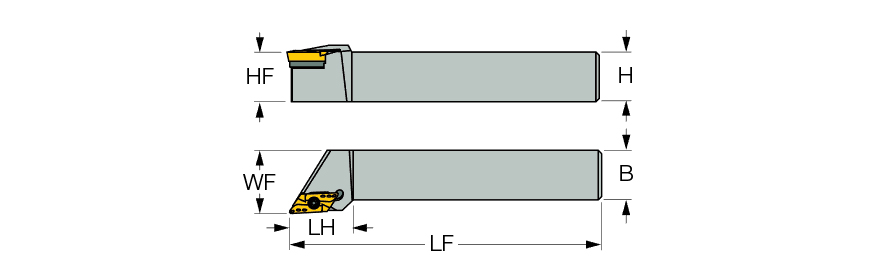

SKJNR 2525M-16
| Shank Height (H) | 25 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 25 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Head Length (LH) | 32 mm | Cutting Position | External |
| Functional Width (WF) | 32 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | KNMX 1604 | Insert Style | 150mm |
| Application | | Ext. 55° Diamond 93° Approach | |
Product Features
| Family Description | Screw clamp tools with 93° entering angle, carrying 55° negative parallelogram inserts | Country of Origin | Israel |
Shipping Info
Package Weight
1.631
