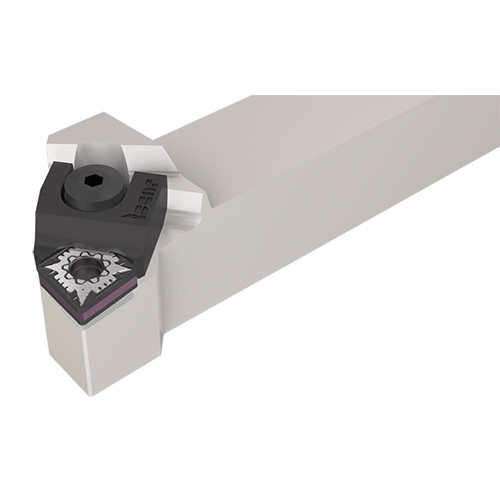

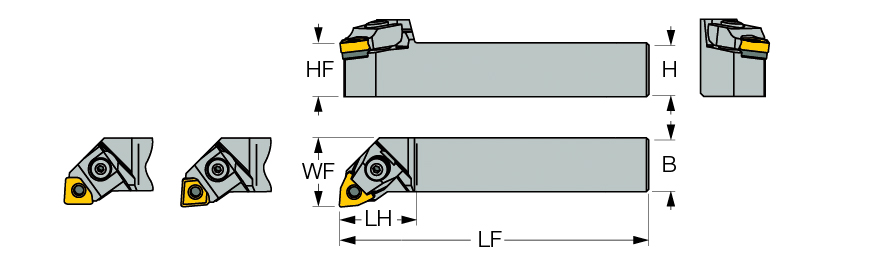

MULNL 2525M-12MW
| Shank Height (H) | 25 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 25 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Head Length (LH) | 35 mm | Cutting Position | External |
| Functional Width (WF) | 32 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Application | | Ext. 80° Diamond 95° Approach | Ext. 80° Trigon 95° Approach | Ext. 90° Square 75° Approach | | Insert Style | 150mm |
Product Features
| Family Description | MULTI-WEDGE lock external tools, carrying 80° negative rhombic or trigon or square inserts. | Country of Origin | Israel |
| Remarks | Only LC WN08 is supplied with the toolholder. The other two wedges should be ordered separately. RH wedge for RH tool LH wedge for LH tool For other wedges see more info |
Shipping Info
Package Weight
1.726
