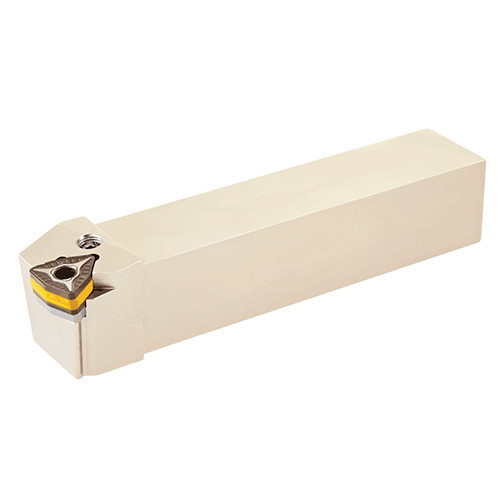

PWXOR 4040S-10-TF-IQ
Turning Toolholder; 250 mm OAL × 40 mm Shank Height × 40 mm Shank Width × 31 mm LH ; Right Hand ; Steel

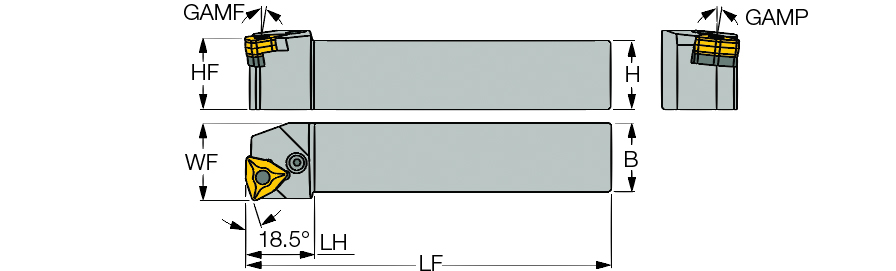

| Shank Height (H) | 40 mm | Application | | Ext. Trigon 18.5° Approach | |
| Shank Width (B) | 40 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 250 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 250 mm | Body Material | Steel |
| Head Length (LH) | 31 mm | Cutting Position | External |
| Functional Width (WF) | 44 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 15.88 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | WOMG 1007-IQ | Insert Style | 250mm |
Product Features

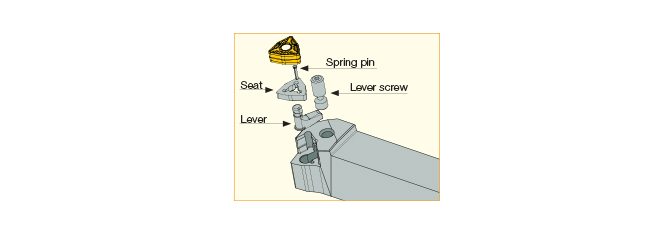

| Family Description | Lever Lock and Dovetail Pocket Tools for Fast Feed Longitudinal Turning | Country of Origin | Israel |
Shipping Info
Package Weight
6.997
