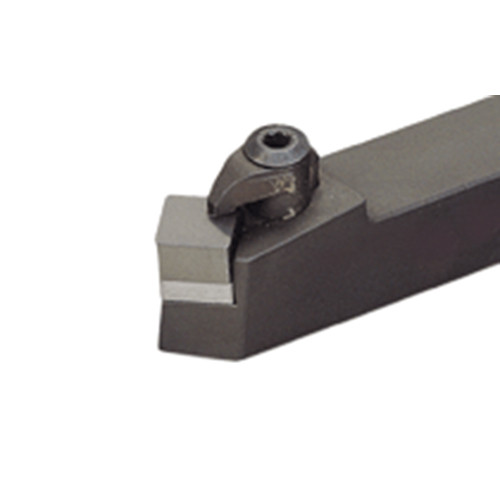

CSDNN 2525M-12CEA

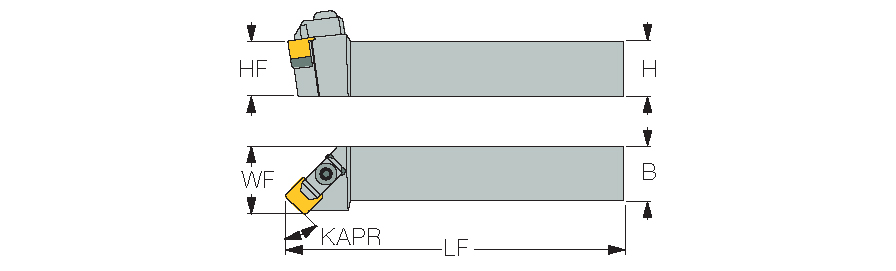

| Shank Height (H) | 25 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 25 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Functional Width (WF) | 12.5 mm | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 12.7 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Neutral | Measurement Type | Metric |
| Master Insert Identification (MIID) | SNGN 1204 | Style | SCLCL08-3A |
| Application | | Ext. 90° Square 45° Approach | | Insert Style | 150mm |
Product Features
| Family Description | 45° entering angle tools carrying square ceramic inserts | Country of Origin | Korea |
Shipping Info
Package Weight
1.673
