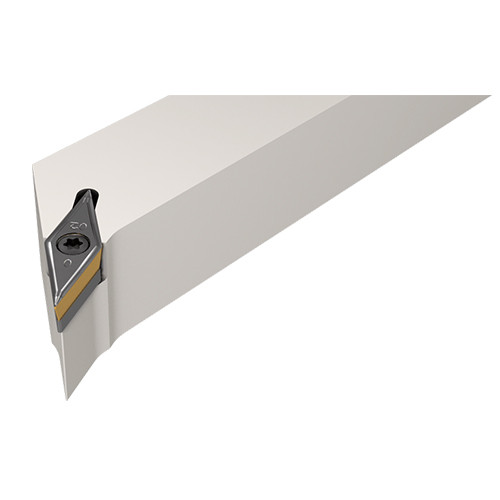

SVXCR 2020K-16

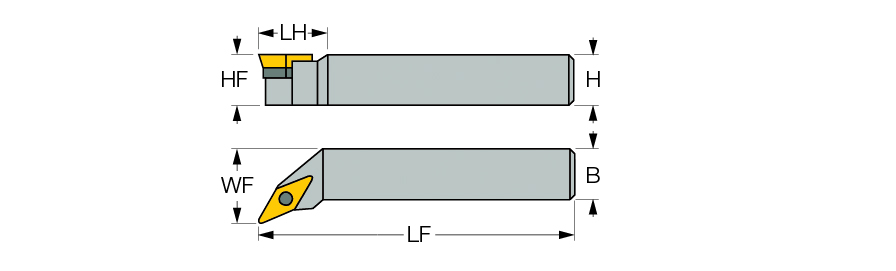

| Shank Height (H) | 20 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 20 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 125 mm | Body Material | Steel |
| Head Length (LH) | 25 mm | Cutting Position | External |
| Functional Width (WF) | 25 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | VC..1604 | Insert Style | 125mm |
| Application | | Ext. 35° Diamond 112° Approach | |
Product Features
| Family Description | 112° entering angle screw lock tools carrying 35° diamond inserts with 7° clearance angle | Country of Origin | Israel |
Shipping Info
Package Weight
0.897
