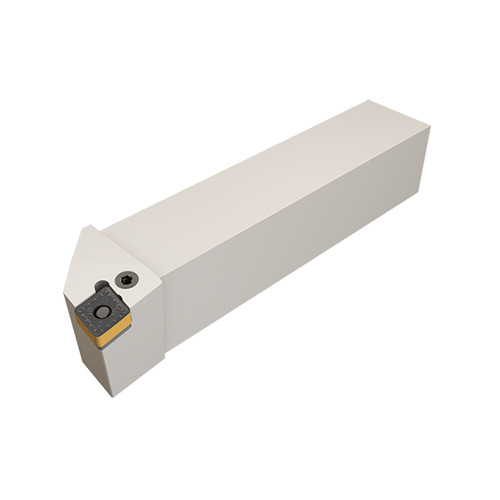

PCLNL 2525M-12

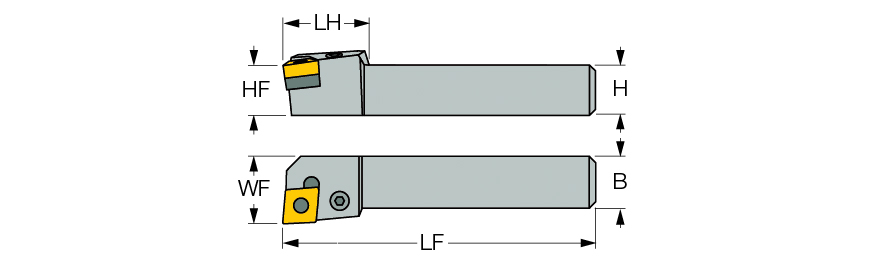

| Shank Height (H) | 25 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 25 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Head Length (LH) | 27.8 mm | Cutting Position | External |
| Functional Width (WF) | 32 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | CNMG 1204.. | Insert Style | 150mm |
| Application | | Ext. 80° Diamond 95° Approach | |
Product Features
| Family Description | Lever lock tools carrying 80° negative rhombic inserts. | Country of Origin | S.Korea |
Shipping Info
Package Weight
1.691
