MCRNR 16-4

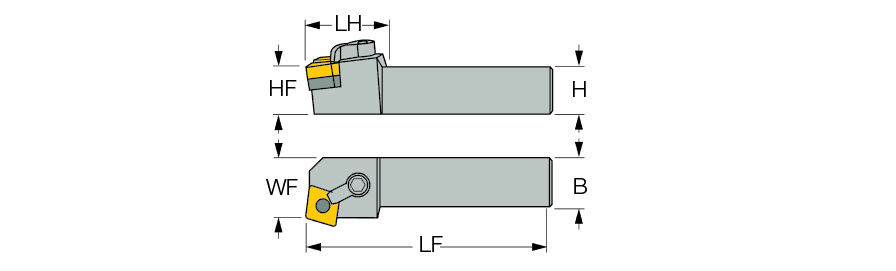

| Shank Height (H) | 1″ | Rake Angle Axial (GAMP) | -5 Degrees |
| Shank Width (B) | 1″ | Rake Angle Radial (GAMF) | -5 Degrees |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Head Length (LH) | 1-1/4″ | Cutting Position | External |
| Functional Width (WF) | 1-1/4″ | Clamping System | CL9 |
| Inscribed Circle Diameter (IC) | 1/2″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Application | | Ext. 100° Diamond 75° Approach | | Style | MCRNR 16-4 |
Product Features
| Family Description | Comlock 75° lead angle holders for negative 80° inserts. | Country of Origin | USA |
Shipping Info
Package Weight
1.84
