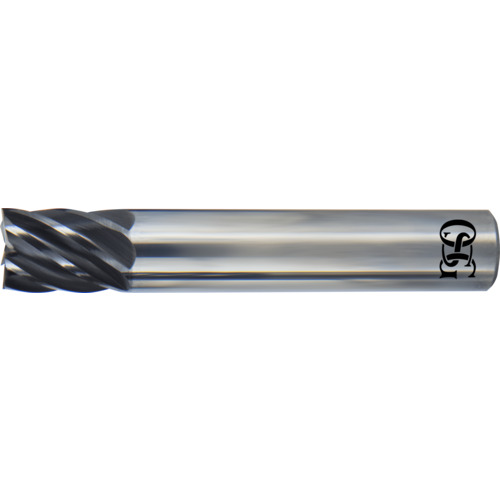

VGM7-03125CR0.06-S - 5/16″ Dia. × 5/16″ Shank × 15/32″ DOC × 2″ OAL, Carbide, EXO, 7 Flute, 0.06″ Corner Radius, End Mill
Corner Radius End Mill; 5/16″ Dia. × 15/32″ LOC × 5/16″ Shank Dia. × 2″ OAL ; 7 FL ; Carbide ; TiAlN ; Series VGM7
| Cutting Diameter (DC) | 5/16″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 15/32″ | Tool Type | End Mill |
| Overall Length (OAL) | 2″ | Decimal Equivalent | 0.3125″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN | Series/List # | VGM7 |
| Flute Count (NOF) | 7 | Corner Radius (RE) / Chamfer Width (CHW) | 0.06″ |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.083
