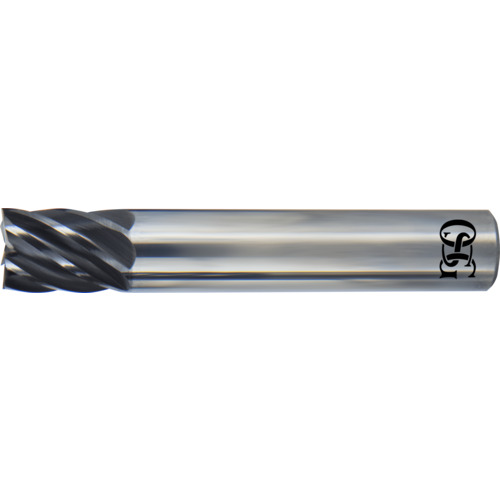

VGM7-02500CR0.06-XXL - 1/4″ Dia. × 1/4″ Shank × 1 1/2″ DOC × 3″ OAL, Carbide, EXO, 7 Flute, 0.06″ Corner Radius, End Mill
Corner Radius End Mill; 1/4″ Dia. × 1-1/2″ LOC × 1/4″ Shank Dia. × 3″ OAL ; 7 FL ; Carbide ; TiAlN ; Series VGM7
| Cutting Diameter (DC) | 1/4″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Tool Type | End Mill |
| Overall Length (OAL) | 3″ | Decimal Equivalent | 0.25″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN | Series/List # | VGM7 |
| Flute Count (NOF) | 7 | Corner Radius (RE) / Chamfer Width (CHW) | 0.06″ |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.076
