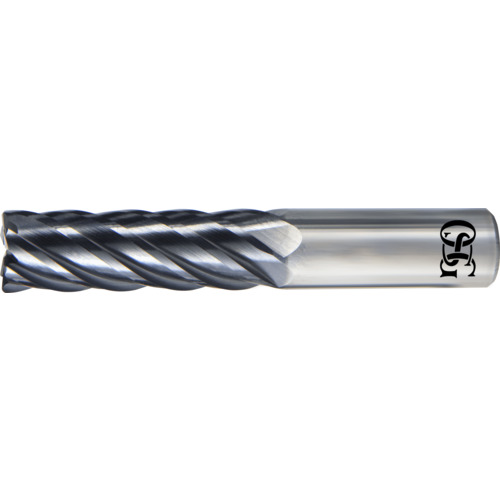

VGM6-010000CR0.09-M - 1″ Dia. × 1″ Shank × 2″ DOC × 5″ OAL, Carbide, EXO, 6 Flute, 0.09″ Corner Radius, End Mill
Corner Radius End Mill; 1″ Dia. × 2″ LOC × 1″ Shank Dia. × 5″ OAL ; 6 FL ; Carbide ; TiAlN ; Series VGM6
| Cutting Diameter (DC) | 1″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 2″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Overall Length (OAL) | 5″ | Tool Type | End Mill |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN | Series/List # | VGM6 |
| Flute Count (NOF) | 6 | Corner Radius (RE) / Chamfer Width (CHW) | 0.09″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.856
