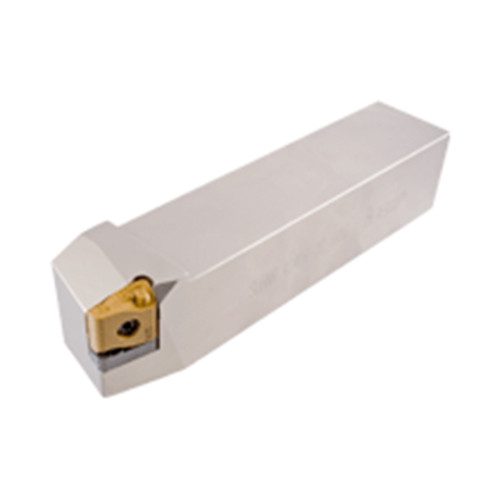

SLBNR 4040R-22 TANG

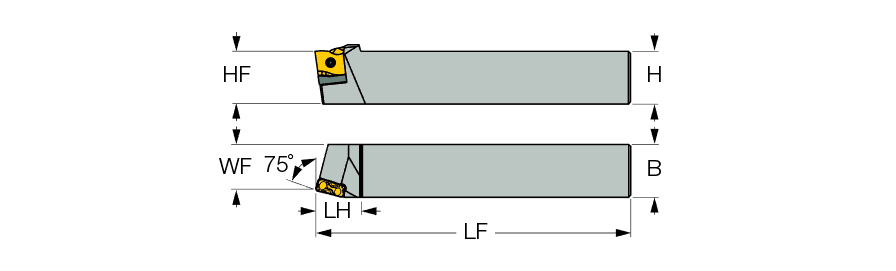

| Shank Height (H) | 40 mm | Rake Angle Axial (GAMP) | -7.4 Degrees |
| Shank Width (B) | 40 mm | Rake Angle Radial (GAMF) | -4.3 Degrees |
| Functional Length (LF) | 200 mm | Body Material | Steel |
| Head Length (LH) | 35 mm | Cutting Position | External |
| Functional Width (WF) | 35 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | LNMX 2210..R/L | Style | SCLCL08-3A |
| Application | | Ext. Tangential 75° Approach | | Insert Style | 200mm |
Product Features
| Family Description | External 75° lead tools carrying tangentially screw clamped inserts, for heavy longitudinal turning. | Country of Origin | Israel |
Shipping Info
Package Weight
5.628
