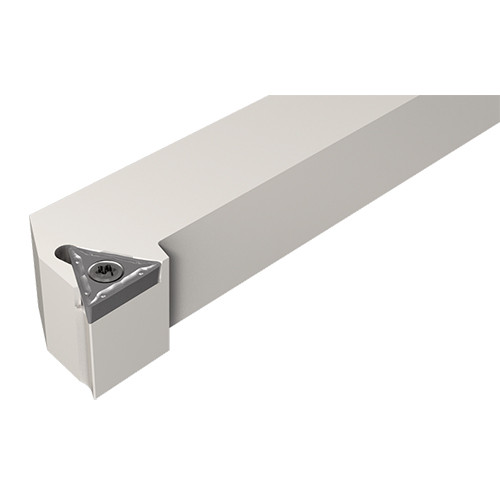

STGCR 1616H-11

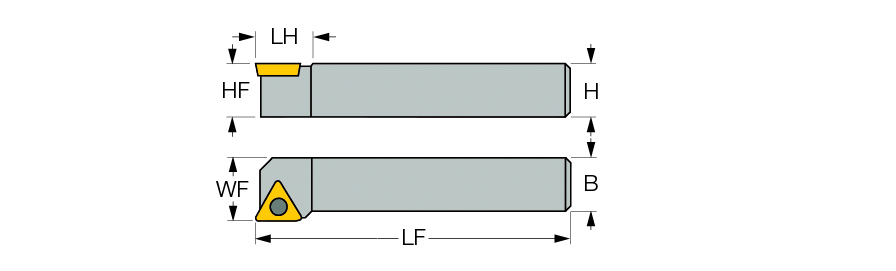

| Shank Height (H) | 16 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 16 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 100 mm | Body Material | Steel |
| Head Length (LH) | 13 mm | Cutting Position | External |
| Functional Width (WF) | 20 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | TC.. 1102 | Insert Style | 100mm |
| Application | | Ext. 60° Triangle 91° Approach | |
Product Features
| Family Description | 91° entering angle screw lock tools carrying triangular inserts with 7° clearance angle | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.485
