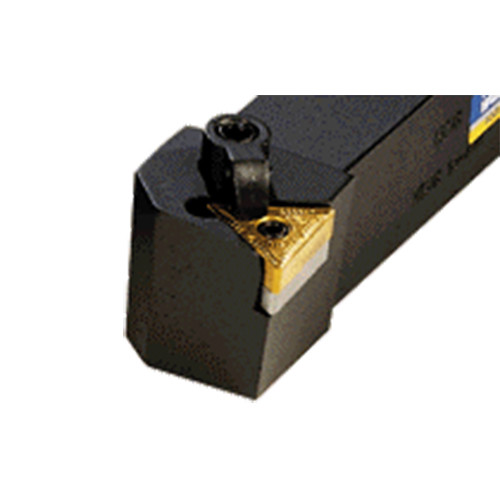

MTGNR 16-4

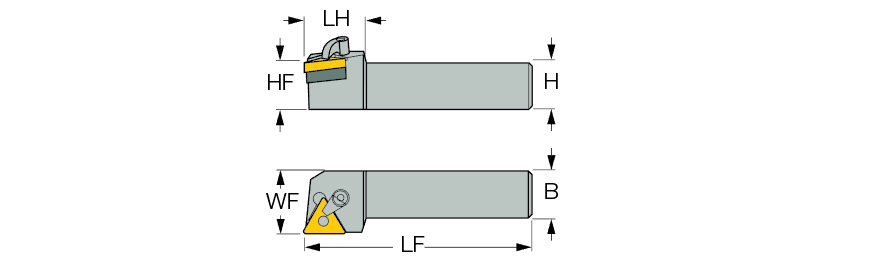

| Shank Height (H) | 1″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 1″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Head Length (LH) | 1.19″ | Cutting Position | External |
| Functional Width (WF) | 1-1/4″ | Clamping System | CL9 |
| Inscribed Circle Diameter (IC) | 1/2″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | TN..4.. | Style | MTGNR 16-4 |
| Application | | Ext. 60° Triangle 91° Approach | |
Product Features
| Family Description | Comlock 90° lead angle holders for negative triangular inserts. | Country of Origin | USA |
Shipping Info
Package Length
6.50000
Package Width
2.00000
Package Height
2.00000
Package Weight
1.951
