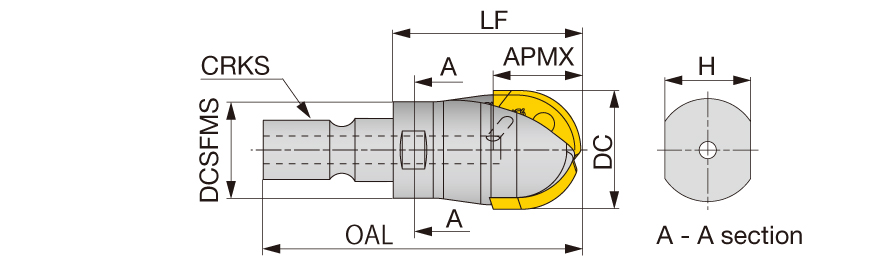

| Cutting Diameter (DC/DCX) | 0.9842″ | Functional Length (LF) | 1.378″ |
| Cutting Diameter (DC) | 0.9842″ | Tool Type | Ball nose endmills |
| Cutting Item Count (CICT) | 2 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.697″ | Body Material | Steel |
| Overall Length (OAL) | 2.244″ | Connection Retention Knob Thread Size (CRKS) | M12 |
| Application | | Profile Milling | | Shank Height (H) | 0.669″ |
| Connection Diameter Machine Side (DCONMS) | 0.827″ | Cutting Diameter Maximum (DCX) | 0.9842″ |
| Master Insert Identification (MIID) | ZRBM250-MM |
Product Features

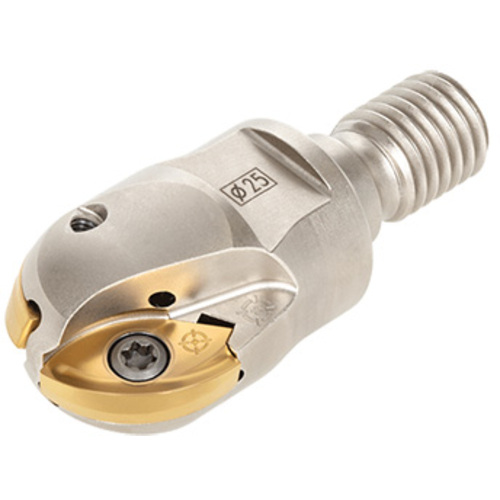

| Family Description | Indexable ball nose endmills for semi-roughing, modular type with TungFlex threaded adaptation | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.000
