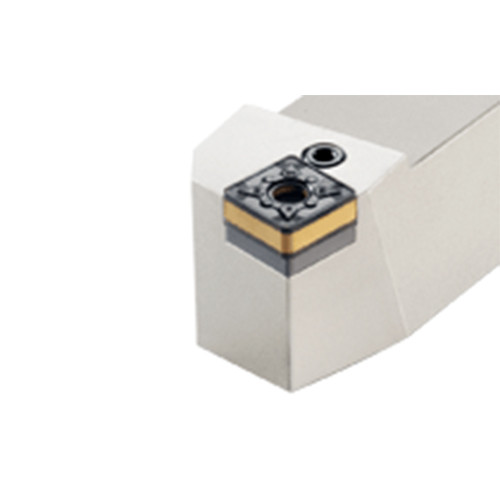

PSBNL 4040S-25

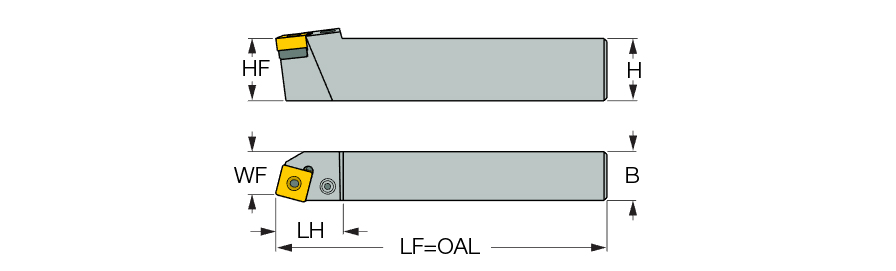

| Shank Height (H) | 40 mm | Rake Angle Axial (GAMP) | -7.3 Degrees |
| Shank Width (B) | 40 mm | Rake Angle Radial (GAMF) | -4.3 Degrees |
| Functional Length (LF) | 250 mm | Body Material | Steel |
| Head Length (LH) | 48 mm | Cutting Position | External |
| Functional Width (WF) | 35 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 25.4 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | SNMG 2507 | Insert Style | 250mm |
| Application | | Ext. 90° Square 75° Approach | |
Product Features
| Family Description | Lever lock 75° entering angle turning tools carrying ISO Negative square inserts | Country of Origin | Korea |
Shipping Info
Package Weight
6.834
