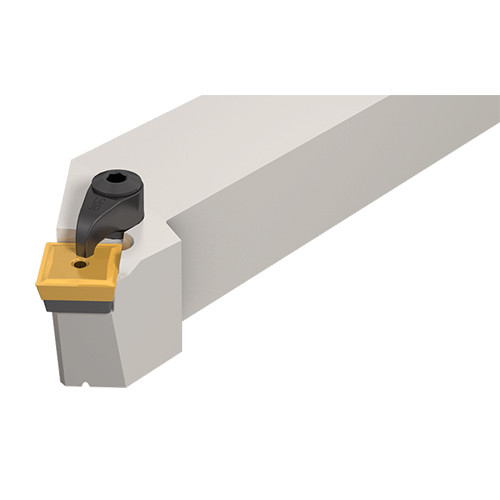

CSSPR 2525M-12

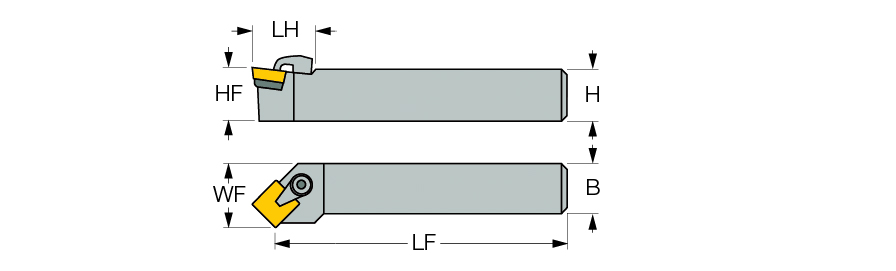

Turning Toolholder; 158.3 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 28 mm LH ; Right Hand ; Steel
| Shank Height (H) | 25 mm | Application | | Ext. 90°Square 45°Face&Turn Ap | |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | 4.3 Degrees |
| Protruding Length (LPR) | 36.1 mm | Rake Angle Radial (GAMF) | 4.3 Degrees |
| Overall Length (OAL) | 158.3 mm | Body Material | Steel |
| Functional Length (LF) | 150 mm | Cutting Position | External |
| Head Length (LH) | 28 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 32 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm | Style | SCLCL08-3A |
| Cutting Direction (HAND) | Right Hand | Insert Style | 150mm |
| Master Insert Identification (MIID) | SPMR 1203 |
Product Features
| Family Description | Clamp lock tools carrying 11° clearance square inserts for longitudinal and face turning. | Country of Origin | Israel |
Shipping Info
Package Weight
1.678
