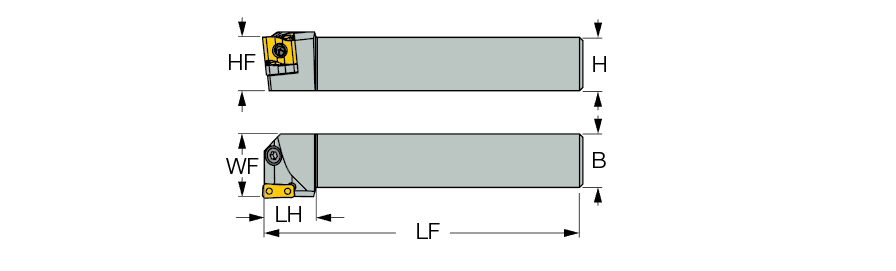

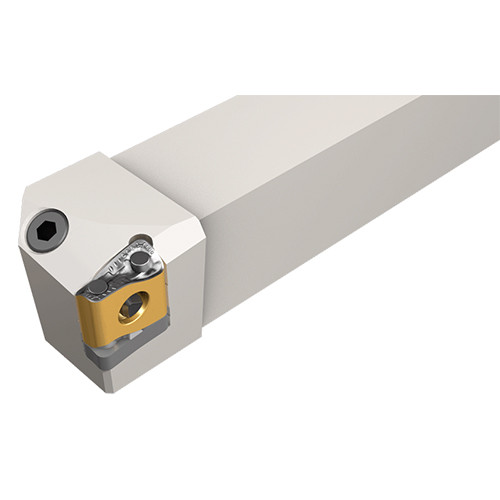

PLANL 4040R-22 TANG
| Shank Height (H) | 40 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 40 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 200 mm | Body Material | Steel |
| Head Length (LH) | 40 mm | Cutting Position | External |
| Functional Width (WF) | 47 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | LNMX 2210..R/L | Style | SCLCL08-3A |
| Application | | Ext. Tangential 93° Approach | | Insert Style | 200mm |
Product Features
| Family Description | Lever lock tools carrying LNMX.. tangentially clamped inserts. Recommended for heavy longitudinal and face turning. | Country of Origin | Israel |
Shipping Info
Package Weight
5.741
