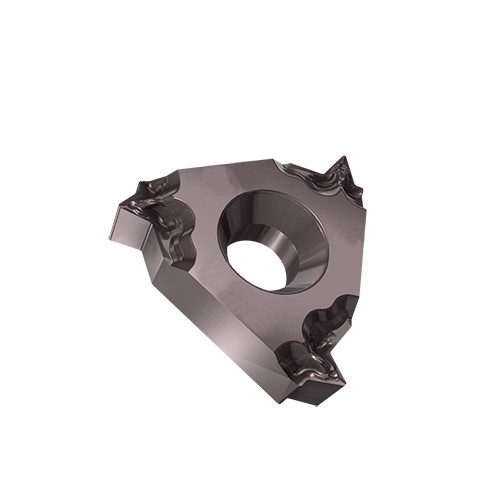

08UIRL U60 GP28A
Laydown Threading Insert
| Inscribed Circle Diameter (IC) | 0.197″ | Threads per Inch Minimum (TPIN) | 12 |
| Insert Length (INSL) | 0.341″ | Threads per Inch Maximum (TPIX) | 18 |
| Corner Radius (RE) | 0.0039″ | Thread Pitch Minimum (TPN) | 1.25 mm |
| Grade | GP28A | Thread Pitch Maximum (TPX) | 2 mm |
| Coating | TiCN, TiN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Thread Form Type (THFT) | VP60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Profile Distance EY (PDY) | 0.0315″ |
| Cutting Direction (HAND) | U-Type |
Product Features
| Family Description | Internal U-Style Laydown Threading Inserts with a 60° Partial Profile for General Applications | Country of Origin | Israel |
