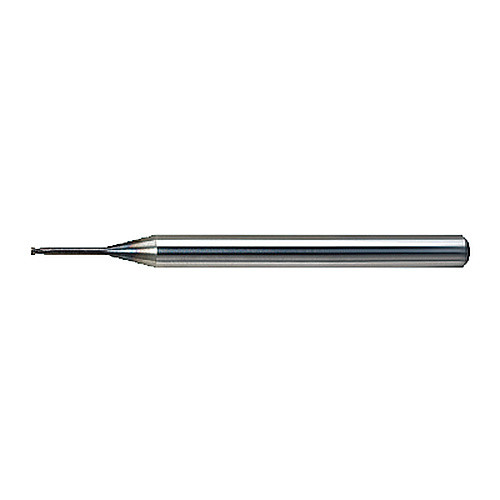

VF2XLD0200N100
Center Cutting End Mill; 2 mm Dia. × 3 mm LOC × 4 mm Shank Dia. × 50 mm OAL ; 2 FL ; AlTiCrN ; Series VF2XL
| Cutting Diameter (DC) | 2 mm | Usable Length (LU) | 10 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Neck Diameter (DN) | 1.9 mm |
| Depth of Cut Maximum (APMX) | 3 mm | Body Half Taper Angle (BHTA) | 12 Degrees |
| Overall Length (OAL) | 50 mm | Peripheral Effective Cutting Edge Count (ZEFP) | 2 |
| Coating | AlTiCrN | Length Group | Long - Necked |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | VF2XL |
| End Shape | Center Cutting |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.990
