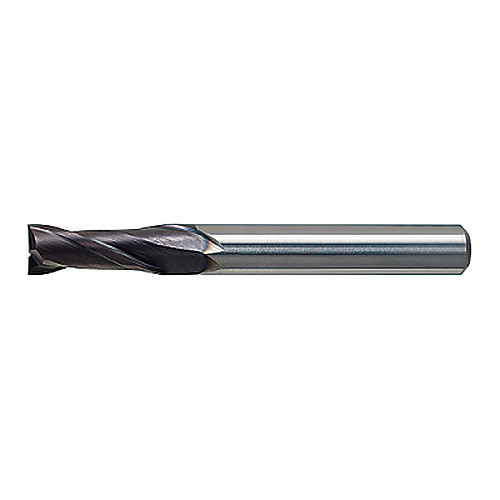

MS2MDD0300
Center Cutting End Mill; 3 mm Dia. × 7.5 mm LOC × 6 mm Shank Dia. × 50 mm OAL ; 2 FL ; TiAlN ; Series MS2MD
| Cutting Diameter (DC) | 3 mm | End Shape | Center Cutting |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Depth of Cut Maximum (APMX) | 7.5 mm | Peripheral Effective Cutting Edge Count (ZEFP) | 2 |
| Overall Length (OAL) | 50 mm | Length Group | Medium |
| Coating | TiAlN | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Series/List # | MS2MD |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.990
