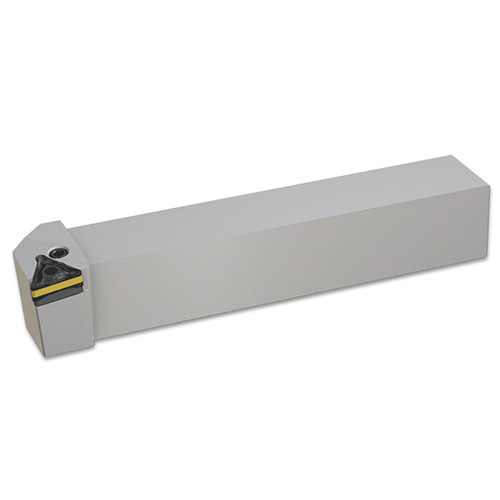

PTGNL 2525M-16X

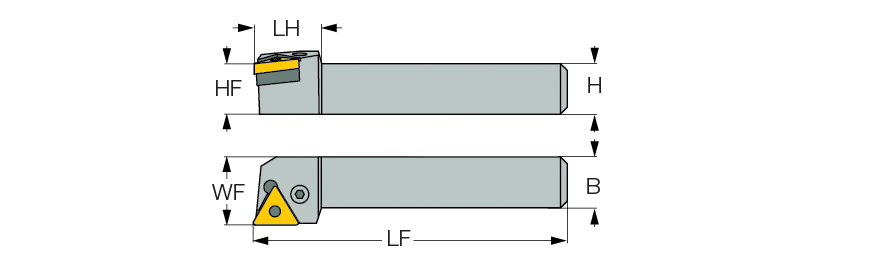

| Shank Height (H) | 25 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 25 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Head Length (LH) | 20 mm | Cutting Position | External |
| Functional Width (WF) | 32 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | TNMX 1606, TNMG 1604 | Insert Style | 150mm |
| Application | | Ext. 60° Triangle 91° Approach | |
Product Features
| Family Description | 91° entering angle lever lock external turning tools carrying negative triangular inserts | Country of Origin | Israel |

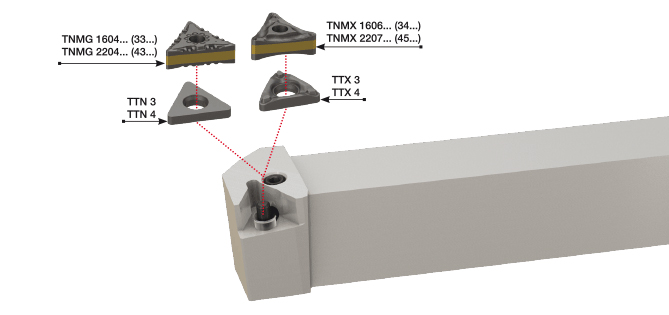

| Remarks | Use TTX 3 seat for TNMX 1606.. inserts and TTN 3 seat for TNMG 1604.. inserts |
Shipping Info
Package Weight
1.739
