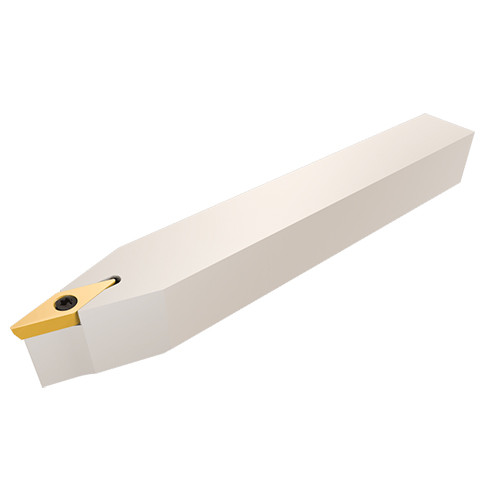

SVVCN 1212K-11S

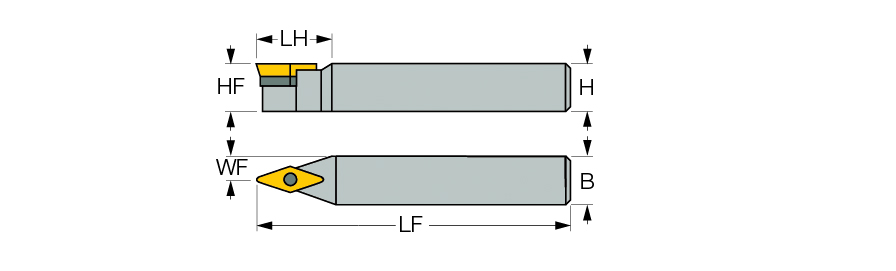

| Shank Height (H) | 12 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 12 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 125 mm | Body Material | Steel |
| Functional Width (WF) | 6.3 mm | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 6.35 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Neutral | Measurement Type | Metric |
| Master Insert Identification (MIID) | VC..1103 | Style | SCLCL08-3A |
| Application | | Ext. 35° Diamond 72.5° Approac | | Insert Style | 125mm |
Product Features
| Family Description | 72.5° entering angle screw lock tools carrying 35° diamond inserts with 7° clearance angle | Country of Origin | Israel |
Shipping Info
Package Weight
0.357
