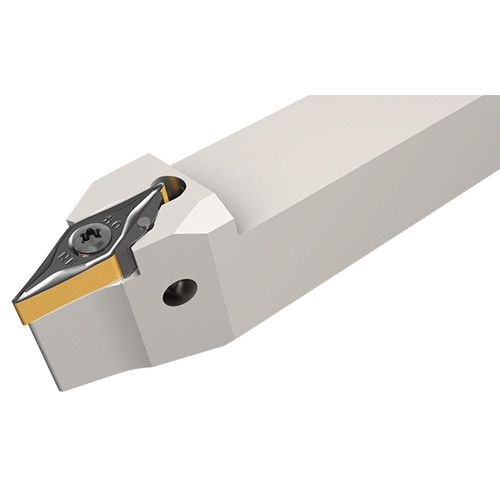

SVVNN 2525M-12F

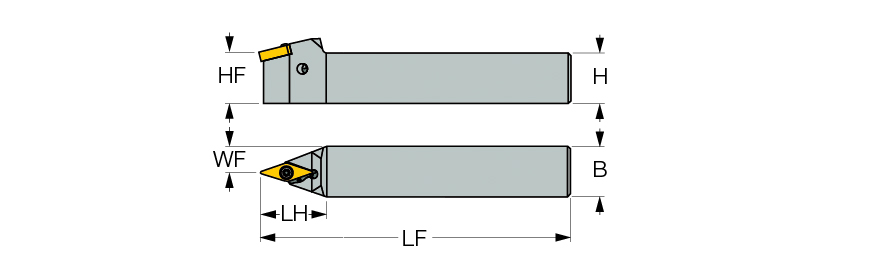

| Shank Height (H) | 25 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 25 mm | Rake Angle Radial (GAMF) | -14 Degrees |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Head Length (LH) | 26 mm | Cutting Position | External |
| Functional Width (WF) | 12.5 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 7.15 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Neutral | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | VNMG 12T3 | Insert Style | 150mm |
| Application | | Ext. 35° Diamond 72.5° Approac | |
Product Features
| Family Description | Screw lock tools with a wedge for high rigidity in profiling applications carrying 35° negative inserts. | Country of Origin | Israel |
| Remarks | Repeatability: for VNMG is ±0.06 mm, for VNGG is ± 0.02 mm |
Shipping Info
Package Weight
1.486
