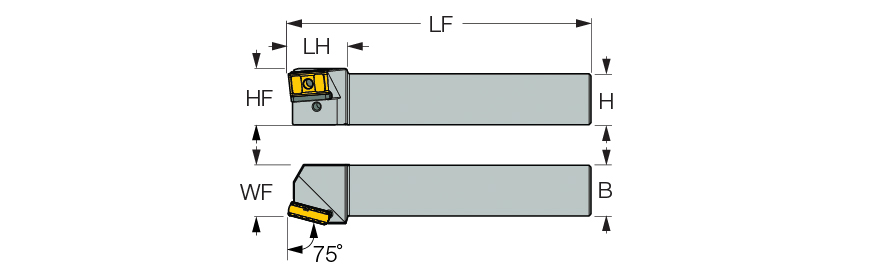

| Shank Height (H) | 50 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 50 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 300 mm | Body Material | Steel |
| Head Length (LH) | 60 mm | Cutting Position | External |
| Functional Width (WF) | 50 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | LOMX 4022 | Style | SCLCL08-3A |
| Application | | Ext. Tangential 75° Approach | | Insert Style | 300mm |
Product Features

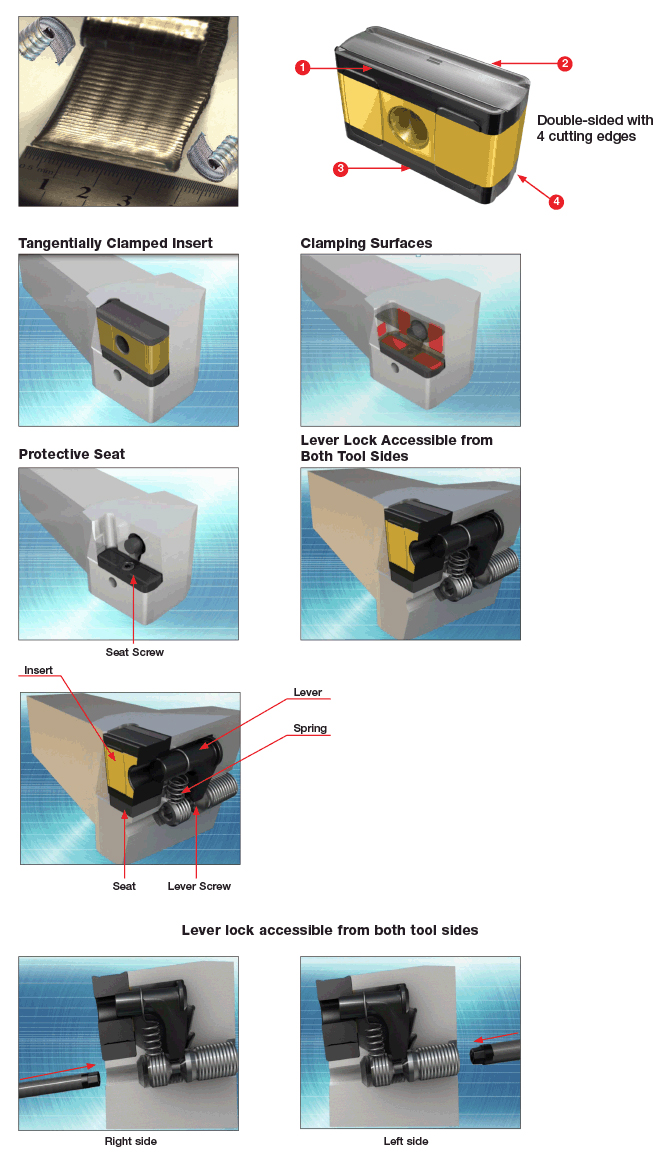

| Family Description | Lever lock tools carrying LOMX tangentially clamped super heavy turning inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
12.981
