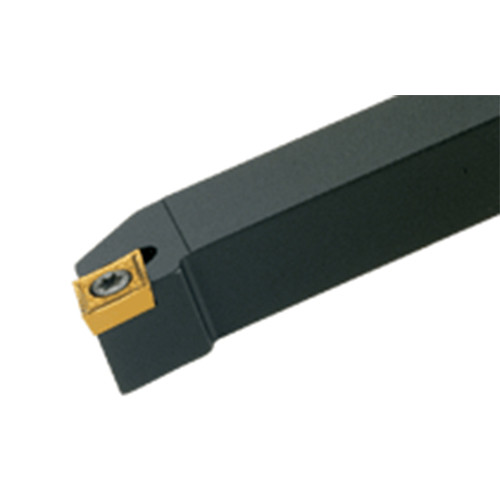

SCLCL 0808F-06

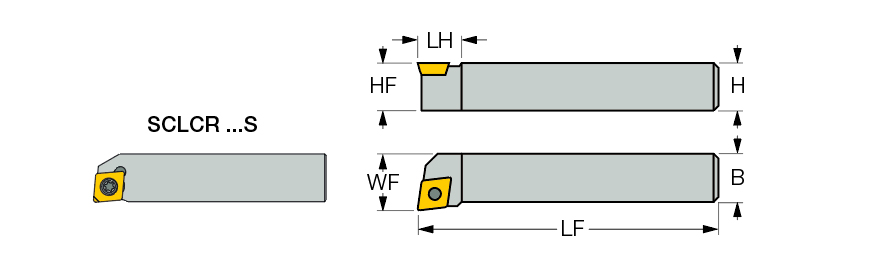

| Shank Height (H) | 8 mm | Application | | Ext. 80° Diamond 95° Approach | |
| Shank Width (B) | 8 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 80 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 10 mm | Body Material | Steel |
| Functional Width (WF) | 10 mm | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 6.35 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | CC.. 0602 | Style | SCLCL08-3A |
Product Features
| Family Description | Screw lock tools carrying 80° diamond inserts with 7° clearance angle. | Country of Origin | Israel |
Shipping Info
Package Weight
0.134
