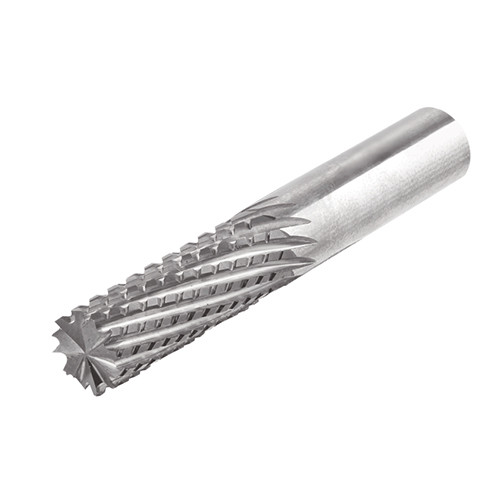

EPN-F12 10-25C10F72 IC02
SQ End Mill; 10 mm Dia. × 25 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 0 mm RE ; 12 FL ; 25 mm LBS ; Carbide ; Uncoated

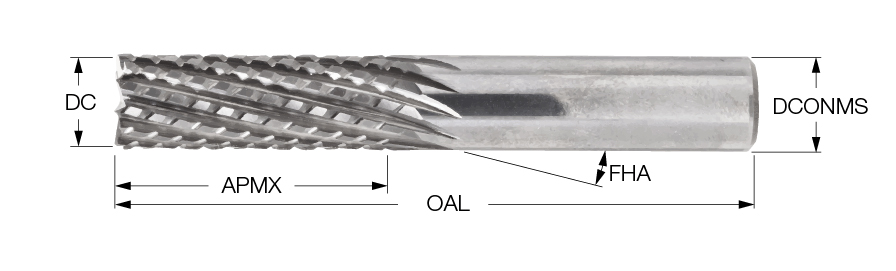

| Cutting Diameter (DC) | 10 mm | Corner Radius (RE) | 0 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 25 mm | Grade | IC02 |
| Overall Length (OAL) | 72 mm | Tool Type | Solid carbide non center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.03 mm/tooth |
| Coating | Uncoated | Minimum Feed per Tooth (fz(min)) | 0.02 mm/tooth |
| Flute Count (NOF) | 12 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 15 Degrees | Body Material | Carbide |
| Shank Type | Round | Style | Solid Carbide Non Center Cutting Endmills 90° |
| End Shape | Corner Radius | Measurement Type | Metric |
| Usable Length (LU) | 25 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Cutting Diameter Tolerance | e8 |
| Application | | Edging | Helical Interpolation | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Solid endmills with a special edge configuration for machining different types of composite materials. | Country of Origin | Israel |
| Remarks | Coated tools available on request |
Shipping Info
Package Weight
0.18
