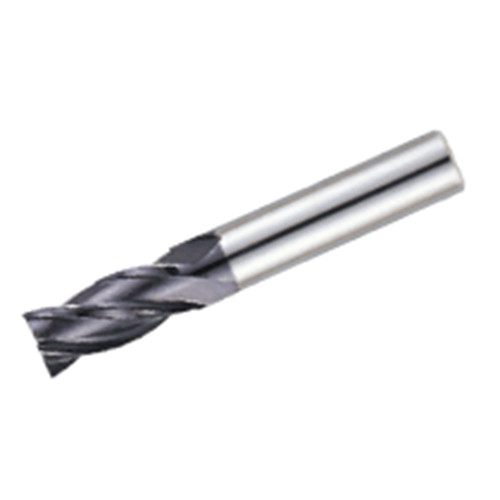

EC-H5M 06-10/25C06CFR.1 IC900
SQ End Mill; 6 mm Dia. × 10 mm LOC × 6 mm Shank Dia. × 61 mm OAL ; 0.1 mm RE ; 5 FL ; 25 mm LBS ; Carbide ; AlTiN

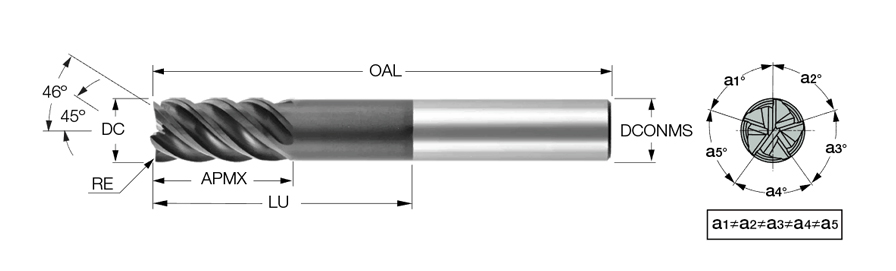

| Cutting Diameter (DC) | 6 mm | Corner Radius (RE) | 0.1 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Ramping Angle Maximum (RMPX) | 2 Degrees |
| Depth of Cut Maximum (APMX) | 10 mm | Grade | IC900 |
| Overall Length (OAL) | 61 mm | Neck Diameter (DN) | 5.6 mm |
| Cutting Edge Material | Carbide | Body Half Taper Angle (BHTA) | 15 Degrees |
| Coating | AlTiN | Tool Type | Solid carbide non center cutting endmills 90° |
| Flute Count (NOF) | 5 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 37 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Corner Radius | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 25 mm | Cutting Diameter Tolerance | e8 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | |
Product Features
| Family Description | 5 flute endmills with different helix and variable pitch for chatter damping with assorted radius dimensions. Used for very high material removal rates roughing and finishing operations. Full slot milling-up to 1XD. | Country of Origin | Italy |
