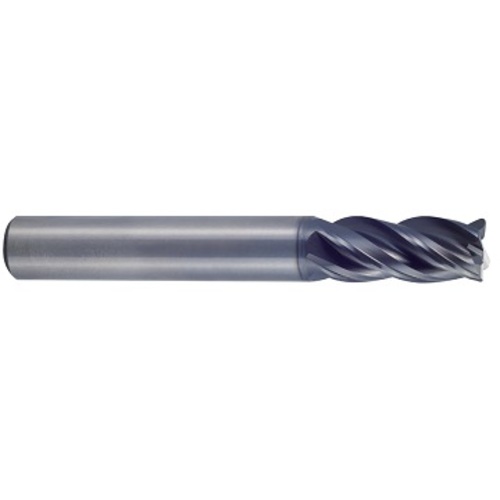

Corner Radius End Mill; 1/2″ Dia. × 1-1/4″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 4 FL ; Carbide ; Y-Coating ; Series UGMF70
SQ End Mill; 1/2″ Dia. × 1-1/4″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 0.01″ RE ; 0.01″ RE ; 4 FL ; Carbide ; AlCrN ; Series UGMF70
| Cutting Diameter (DC) | 1/2″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Corner Radius (RE) | 0.01″ |
| Overall Length (OAL) | 3″ | Decimal Equivalent | 0.5″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | AlCrN | Series/List # | UGMF70 |
| Flute Count (NOF) | 4 | Corner Radius (RE) / Chamfer Width (CHW) | 0.01″ |
| Flute Helix Angle (FHA) | 35 Degrees/37 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.464566929
Package Width
0.708661417
Package Height
0.708661417
Package Weight
0.999
