2B286 0400 RA R2AH
BN End Mill; 4 mm Dia. × 6 mm LOC × 6 mm Shank Dia. ; TiAlSiN
Additional Tariff Surcharge of 8 %

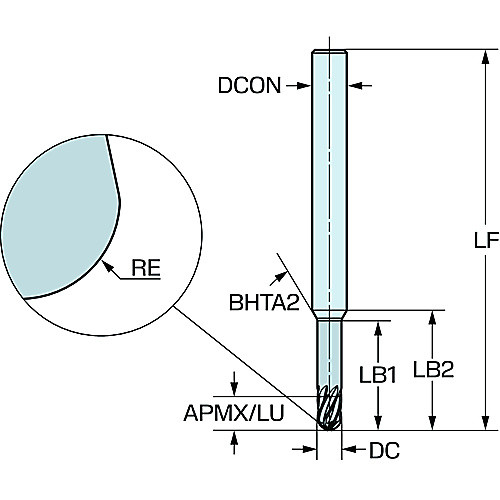

| Cutting Diameter (DC) | 4 mm | Corner Radius (RE) | 2 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Body Half Taper Angle (BHTA) | 30 Degrees |
| Depth of Cut Maximum (APMX) | 6 mm | Grade | R2AH |
| Coating | TiAlSiN | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Usable Length (LU) | 6 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Applicable Material | | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Country of Origin | Italy |
