284-000123 1/4-4FL-AP

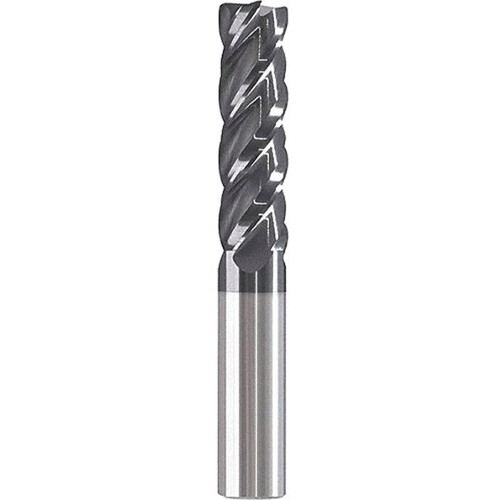

SQ End Mill; 1/4″ Dia. × 1-1/8″ LOC × 1/4″ Shank Dia. × 3″ OAL ; 4 FL ; Carbide ; AlTiCrN ; Series 284
| Cutting Diameter (DC) | 1/4″ | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Application | Slotting | Profiling | Ramping | Profile Cutting |
| Depth of Cut Maximum (APMX) | 1-1/8″ | Grade | C-2 Sub-Micron |
| Overall Length (OAL) | 3″ | Length Group | Long |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.25″ |
| Coating | AlTiCrN | Series/List # | 284 |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | Variable | Single / Double End | Single End |
| End Shape | Square | Center Cutting | Yes |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.08
