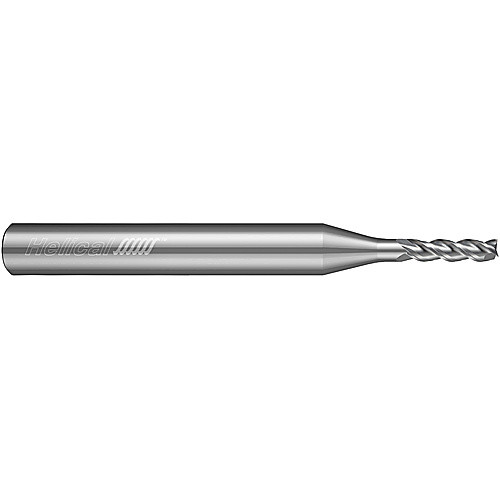

H40AMV-040-30125-R.030
Corner Radius End Mill; 1/8″ Dia. × 1/2″ LOC × 1/4″ Shank Dia. × 2″ OAL ; 3 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 1/8″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 1/2″ | Corner Radius (RE) | 0.03″ |
| Overall Length (OAL) | 2″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Length Group | 4D |
| Coating | Uncoated | Decimal Equivalent | 0.125″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 40 Degrees | Center Cutting | Yes |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.055
