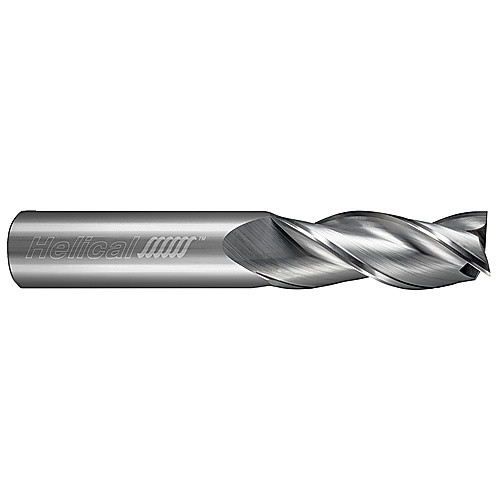

H35AL-Y-30312
SQ End Mill; 5/16″ Dia. × 2-1/2″ LOC × 5/16″ Shank Dia. × 4″ OAL ; 3 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 5/16″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 2-1/2″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 4″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Length Group | 8D |
| Coating | Uncoated | Decimal Equivalent | 0.3125″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 35 Degrees | Center Cutting | Yes |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.173
