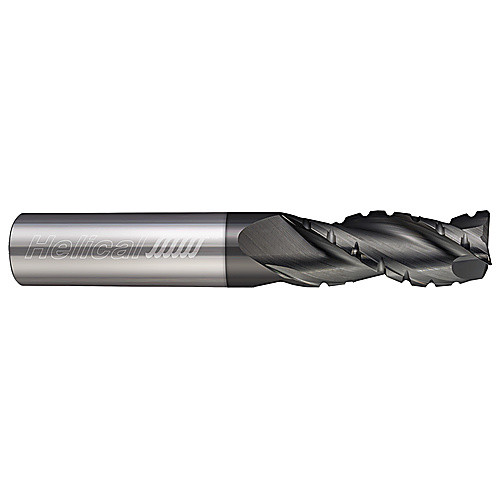

H35ALV-C-012-30500-R.010
Corner Radius End Mill; 1/2″ Dia. × 5/8″ LOC × 1/2″ Shank Dia. × 2-1/2″ OAL ; 3 FL ; Carbide
| Cutting Diameter (DC) | 1/2″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 5/8″ | Corner Radius (RE) | 0.01″ |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Length Group | 1.3D |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.5″ |
| Flute Helix Angle (FHA) | 35 Degrees | Measurement Type | Inch |
| Shank Type | Round | Center Cutting | Yes |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.277
