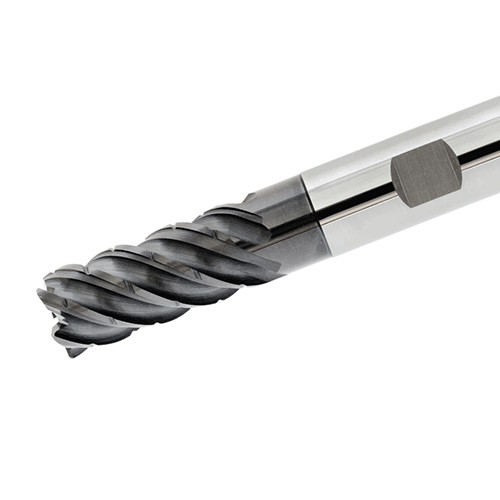

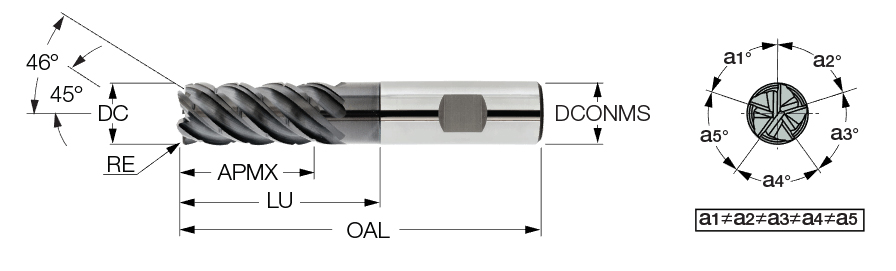

ECP-H5L 08-18/32W08CFR.3 IC900
SQ End Mill; 8 mm Dia. × 18 mm LOC × 8 mm Shank Dia. × 68 mm OAL ; 0.3 mm RE ; 5 FL ; 32 mm LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 8 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Grade | IC900 |
| Depth of Cut Maximum (APMX) | 18 mm | Neck Diameter (DN) | 7.8 mm |
| Overall Length (OAL) | 68 mm | Body Half Taper Angle (BHTA) | 7.8 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90° |
| Coating | AlTiN | Maximum Feed per Tooth (fz(max)) | 0.08 mm/tooth |
| Flute Count (NOF) | 5 | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Helix Angle (FHA) | 35 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Weldon | Body Material | Carbide |
| End Shape | Corner Radius | Measurement Type | Metric |
| Usable Length (LU) | 32 mm | Connection Code Machine Side (CCMS) | Weldon |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
| Corner Radius (RE) | 0.3 mm |
Product Features
| Family Description | CHATTERFREE 5 flute solid carbide roughing endmills with different helix and long chip splitting cutting edges for high stock removal rates. Mainly for machining stainless steel,high temperature alloys and titanium | Country of Origin | Italy |
Shipping Info
Package Weight
1.72
