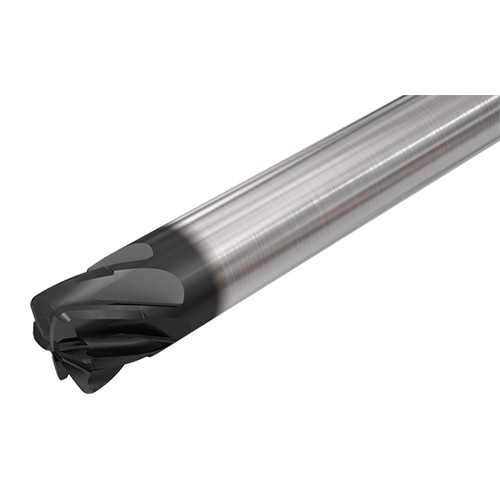

ELB-R1R25A9-6C12-83 IC902

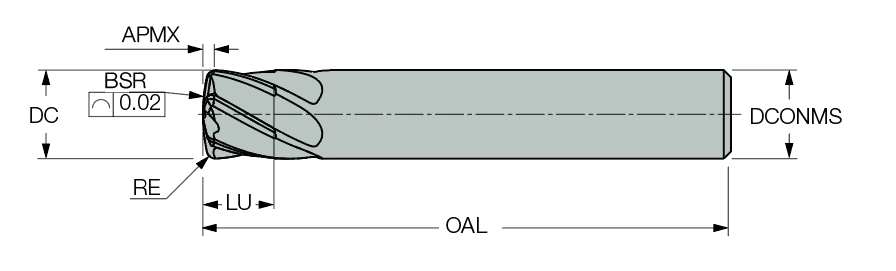

SQ End Mill; 12 mm Dia. × 1.53 mm LOC × 12 mm Shank Dia. × 83 mm OAL ; 1 mm RE ; 6 FL ; 9 mm LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 12 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Application | | Profiling | |
| Depth of Cut Maximum (APMX) | 1.53 mm | Corner Radius (RE) | 1 mm |
| Overall Length (OAL) | 83 mm | Grade | IC902 |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.3 mm/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| Flute Count (NOF) | 6 | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Measurement Type | Metric |
| Usable Length (LU) | 9 mm |
Product Features
| Family Description | Solid carbide lens-shaped(Barrel) endmills for 3D profiling. For semi-finish & finishing applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.307
