ECI-A-4 250-750-C250 IC300

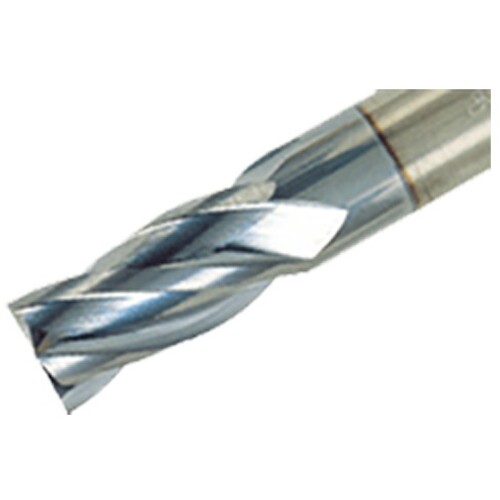

SQ End Mill; 1/4″ Dia. × 3/4″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; TiCN
| Cutting Diameter (DC) | 1/4″ | Application | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 3/4″ | Grade | IC300 |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Solid carbide center cutting endmills 90 Degrees |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.003 ″/tooth |
| Coating | TiCN | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Decimal Equivalent | 0.25″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Square | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
Product Features
| Family Description | 4 flute, 30° helix, medium length, solid carbide endmills. | Country of Origin | Israel |
Shipping Info
Package Weight
0.066
