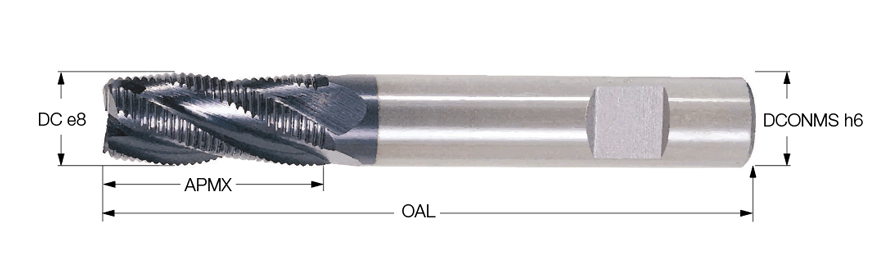

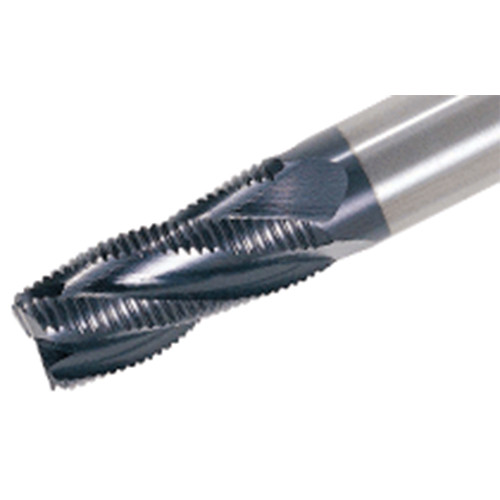

ERH-A3 08-19W10-69 HS MPC
SQ End Mill; 8 mm Dia. × 19 mm LOC × 10 mm Shank Dia. × 69 mm OAL ; 0 mm RE ; 3 FL ; 19 mm LBS ; HSS ; TiN
| Cutting Diameter (DC) | 8 mm | Corner Radius (RE) | 0 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Grade | MPC |
| Depth of Cut Maximum (APMX) | 19 mm | Neck Diameter (DN) | 8 mm |
| Overall Length (OAL) | 69 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Cutting Edge Material | HSS | Tool Type | Solid carbide non center cutting endmills 90° |
| Coating | TiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Style | Solid Carbide Non Center Cutting Endmills 90° |
| Shank Type | Weldon | Measurement Type | Metric |
| End Shape | Corner Radius | Connection Code Machine Side (CCMS) | Weldon |
| Usable Length (LU) | 19 mm | Cutting Diameter Tolerance | e8 |
| Application | | Counter Boring | Helical Interpolation | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | 3-5 flute, 30° helix, medium length roughing HSS endmills. | Country of Origin | China |
Shipping Info
Package Weight
0.079
